STRATASYS J55 Prime
Polyjet Industrial 3D Printer. Possibilities at Every Turn.
The J55 Prime 3D printer introduces full color, high fidelity with tactile, functional and sensory capabilities – making the efficiency and quality of PolyJet Technology more affordable and office friendly than ever before. Create over 640,000 unique combinations, including Pantone Verified colors and save hours of time by replacing hand-painting techniques with vibrant color finishes.
✔️ Texture

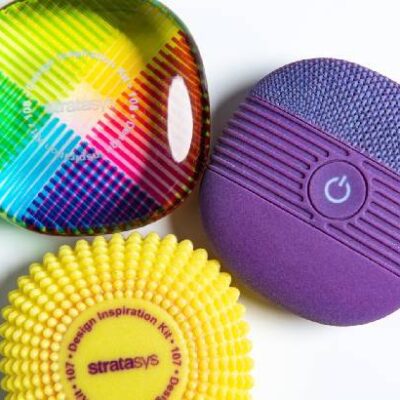

From wood to fabric, the J55™ Prime offers a texture option to suit every design need. Virtually eliminate post-processing and upgrade the realism of your models with just a few clicks.Full Colour printing
✔️ Color variation
Create nearly 640,000 unique combinations, including Pantone Verified colors. Save hours of time by replacing hand-painting techniques with vibrant color finishes.
✔️ Clear
Realize your design ideas more fully with transparent materials. VeroUltraClearS can simulate glass and plastic in a range of tints for models that look and function like the real thing.
| Industries | Consumer Products, Education, Life Science, Transportation & Mobility |
|---|---|
| Applications | Design, Jigs and Fixtures, Manufacturing, Packaging, Production Parts, Rapid Prototyping |
| Build Tray | 1,174 cm2 |
| Layer Thickness | Horizontal build layers down to 18 microns |
| Model Materials | Vibrant VeroVivid™ family of colored materials, Transparent VeroClear™, Low-cost DraftGrey™ |
| Elastico™, Vero™ContactClear, Digital ABS, VeroUltra™ | |
| Support Material | SUP710™ |
| Network Connectivity | LAN – TCP/IP |
| System Size and Weight | 651 x 661 x 1511 mm, 228 kg |
| Operator Conditions | Temperature 18 – 25 °C, relative humidity 30 – 70% (non-condensing) |
| Power Requirements | 100 – 240 VAC, 50 – 60 HZ, 10A, 1 phase |
| Regulatory Compliance | CE, FCC, EAC, cTUVus, CB, RCM |
| Software | GrabCAD Print™, SDK (API) |
| Build Modes | High Quality Speed (HQS) – 18.75μm |
| Accuracy | Deviation from STL dimensions: For 1 Sigma (67%) of models printed with rigid materials, based on size: under 100 mm – ±150μ; above 100 mm – ±0.15% of part length. For 2 Sigma (95%) of models printed with rigid materials, based on size: under 100 mm – ±180μ; above 100 mm – ±0.2% of part length. |
