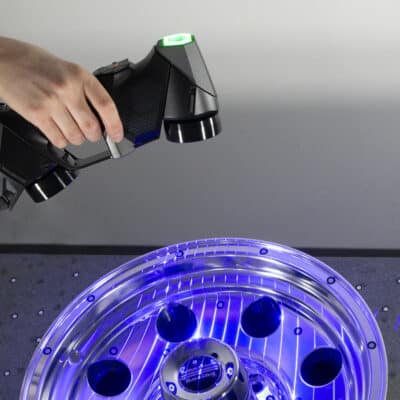

| Accuracy(1) | 0.035 mm | 0.025 mm |
| (0.0014 in) | (0.0009 in) |
| 0.012 mm (0.0005 in) with Limited Edition (5) |
| Volumetric accuracy(2) (based on part size) | 0.020 mm + 0.060 mm/m | 0.020 mm + 0.040 mm/m (0.0008 in + 0.0005 in/ft) |
| (0.0008 in + 0.0007 in/ft) | 0.012 mm + 0.020mm/m (0.0005 in + 0.0002 in/ft) |
| with Limited Edition (5) |
| Volumetric accuracy with MaxSHOT Next™ | Elite(3) | 0.020 mm + 0.015 mm/m |
| (0.0008 in + 0.00018 in/ft) |
| Measurement resolution | 0.025 mm |
| (0.0009 in) |
| Mesh resolution | 0.100 mm |
| (0.0039 in) |
| Measurement rate | 800,000 measurements/s | 1,300,000 measurements/s |
| Light source | 7 blue laser crosses | 11 blue laser crosses |
| (+ 1 extra line) |
| Laser class | 2M |
| (eye-safe) |
| Scanning area | 310 x 350 mm |
| (12.2 x 13.8 in) |
| Stand-off distance | 300 mm |
| (11.8 in) |
| Depth of field | 250 mm |
| (9.8 in) |
| Part size range (recommended) | 0.05–4 m |
| (0.15–13 ft) |
| Software | VXelements |
| Output formats | .dae, .fbx, .ma, .obj, .ply, .stl, .txt, .wrl, .x3d, .x3dz, .zpr, .3mf |
| Compatible software4 | 3D Systems (Geomagic® Solutions), InnovMetric Software (PolyWorks), Metrologic Group (Metrolog X4), New River Kinematics (Spatial Analyzer), Verisurf, Dassault Systèmes (CATIA V5, SOLIDWORKS), PTC (Creo), Siemens (NX, Solid Edge), Autodesk (Inventor, PowerINSPECT) |
| Weight | 0.94 kg |
| (2.1 lb) |
| Dimensions (LxWxH) | 79 x 142 x 288 mm |
| (3.1 x 5.6 x 11.3 in) |
| Connection standard | 1 X USB 3.0 |
| Operating temperature range | 5-40 °C |
| (41-104 °F) |
| Operating humidity range (non-condensing) | 10-90% |
| Certifications | EC Compliance (Electromagnetic Compatibility Directive, Low Voltage Directive), compatible with rechargeable batteries (when applicable), IP50, WEEE |
| Patents | CA 2,600,926, CN 200680014069.3, US 7,912,673, CA 2,656,163, EP (FR, UK, DE) 1,877,726, AU 2006222458, US 8,032,327, JP 4,871,352, US 8,140,295, EP (FR, UK, DE) 2,278,271, EP (FR, UK, DE) 2,230,482, IN 266,573, US 7,487,063, CA 2,529,044, EP (FR, UK, DE) 3,102,908, US 15/114,563, CN 201580007340X |
| | |
| (1) HandySCAN BLACK and HandySCAN BLACK Ι Elite (ISO 17025 accredited): Based on VDI/VDE 2634 part 3 standard. Probing error performance is assessed with diameter measurements on traceable sphere artefacts (ISO 17025 accredited). |
| | |
| (2) HandySCAN BLACK and HandySCAN BLACK Ι Elite (ISO 17025 accredited): Based on VDI/VDE 2634 part 3 standard. Sphere-spacing error is assessed with traceable length artefacts by measuring these at different locations and orientations within the working volume. Results are obtained using integrated photogrammetry with volumetric accuracy optimization. |
| | |
| (3) The volumetric accuracy of the system when using a MaxSHOT 3D cannot be superior to the default accuracy of the chosen system and model. |
| | |
| (4) Also compatible with all major metrology, CAD, and computer graphic software through mesh and point cloud import. |
| | |
| (5) Limited Edition is able to deliver improved accuracy through optimized manufacturing and calibration processes. |
