Go!SCAN 3D enables easiest 3D scanning experience, generating fast and reliable measurements for all your design and prototyping needs. Effortlessly capture the 3D shape and color of any object.
THE FASTEST AND EASIEST 3D SCANNING EXPERIENCE
When ease of use meets versatility and portability
Go!SCAN 3D enables easiest 3D scanning experience, generating fast and reliable measurements for all your design and prototyping needs. Effortlessly capture the 3D shape and color of any object.

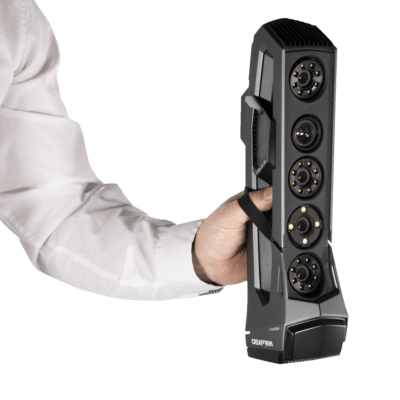

The Go!SCAN 3D is our fastest, user-friendly handheld 3D scanner. A powerful tool during the product development phase, the Go!SCAN 3D quickly measures any complex surface making it possible to “get it right” the first time. With its seamless integration to your 3D modelling software and your product life cycle management workflow, it will greatly improve product development, foster innovation and shorten time to market.
Designed to scan any object without need for a set-up, it offers flawless texture and geometry acquisition as well as impressive details in a rich color palette. Just go…and scan!
| Scanner Technology | Laser |
|---|---|
| Industries | Aerospace & Defence, Consumer Packaged Goods, Consumer Products, Education, Energy, Process & Utilities, Industrial Equipment, Life Science, Transportation & Mobility |
| Go!SCAN SPARK™ | |
| Accuracy(1) | Up to 0.050 mm |
| (0.0020 in) | |
| Volumetric accuracy(2) (based on part size) | 0.050 mm + 0.150 mm/m |
| (0.0020 in + 0.0018 in/ft) | |
| Volumetric accuracy with MaxSHOT Next™ | Elite(3) | 0.050 mm + 0.015 mm/m |
| (0.0020 in + 0.00018 in/ft) | |
| Measurement resolution | 0.100 mm |
| (0.0039 in) | |
| Mesh resolution | 0.200 mm |
| (0.0078 in) | |
| Measurement rate | 1,500,000 measurements/s |
| Light source | White light (99 stripes) |
| Positioning methods | Geometry and/or color and/or targets |
| Scanning area | 390 x 390 mm |
| (15.4 x 15.4 in) | |
| Stand-off distance | 400 mm |
| (15.7 in) | |
| Depth of field | 450 mm |
| (17.7 in) | |
| Part size range (recommended) | 0.1–4 m |
| (0.3–13 ft) | |
| Texture resolution | 50 to 200 DPI |
| Texture colors | 24 bits |
| Software | VXelements |
| Output formats | .dae, .fbx, .ma, .obj, .ply, .stl, .txt, .wrl, .x3d, .x3dz, .zpr, .3mf |
| Compatible software (4) | 3D Systems (Geomagic® Solutions), InnovMetric Software (PolyWorks), Metrologic Group (Metrolog X4), New River Kinematics (Spatial Analyzer), Verisurf, Dassault Systèmes (CATIA V5, SOLIDWORKS), PTC (Creo), Siemens (NX, Solid Edge), Autodesk (Inventor, PowerINSPECT) |
| Weight | 1.25 kg |
| (2.7 lb) | |
| Dimensions (LxWxH) | 89 x 114 x 346 mm |
| (3.5 x 4.5 x 13.6 in) | |
| Connection standard | 1 X USB 3.0 |
| Operating temperature range | 5-40 °C |
| (41-104 °F) | |
| Operating humidity range (non-condensing) | 10-90% |
| Certifications | EC Compliance (Electromagnetic Compatibility Directive, Low Voltage Directive), compatible with rechargeable batteries (when applicable), IP50, WEEE |
| Patents | CA 2,600,926, CN 200680014069.3, US 7,912,673, EP (FR, UK, DE) 1,877,726, AU 2006222458, US 8,032,327, JP 4,871,352, EP (FR, UK, DE) 2,278,271, IN 266,573, US 7,487,063, CA 2,529,044, CA 2,810,587, US 8,836,766, JP 5,635,218, CA 2,875,754, EP (FR, UK, DE) 2,751,521, US 9,325,974, CA 2,835,306, CN 201280023545.3, CN 201280049264.5, JP 6,025,830, EP (FR, UK, DE) 2,875,314, CN ZL 201380029999.6, JP 6,267,700, EP (FR, UK, DE) 3,102,908, US 15/114,563, CN 201580007340X |
| (1) Typical value for diameter measurement on a calibrated sphere artefact. | |
| (2) Performance assessed with traceable length artefacts using positioning targets. Objects with sufficient geometry/color texture can enable this level of performance without positioning targets. Results are obtained using integrated photogrammetry with volumetric accuracy optimization. | |
| (3) The volumetric accuracy of the system when using a MaxSHOT 3D cannot be superior to the default accuracy. | |
| (4) Also compatible with all major metrology, CAD, and computer graphic software through mesh and point cloud import. | |
