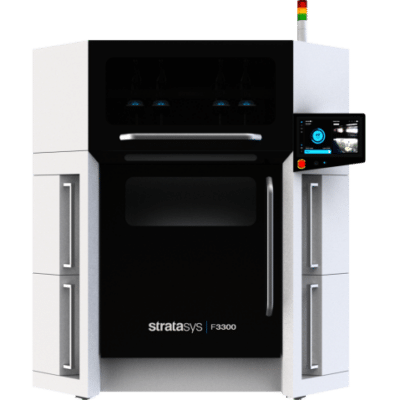

F3300
Industrial FDM Reinvented.
Lower your cost per part with the new benchmark in FDM technology. The F3300 prints up to twice as fast as legacy extrusion 3D printing systems, doubling your throughput capability. Designed for speed, ease of use, reliability, and high yield, provides the efficiency, productivity, and real-time monitoring architecture required in today’s manufacturing.
Up to 2X Faster Time-to-Print. Increased gantry speed (XYZ extruder positioning, Faster material extrusion rates, Autocalibration (vs. time-consuming manual calibration), Multiple extruders and patented automatic tool changer.
50% More Reliable. EtherCAT onboard system monitoring and communication, Redundant extruder system, System health monitoring, Integrated material dryers.

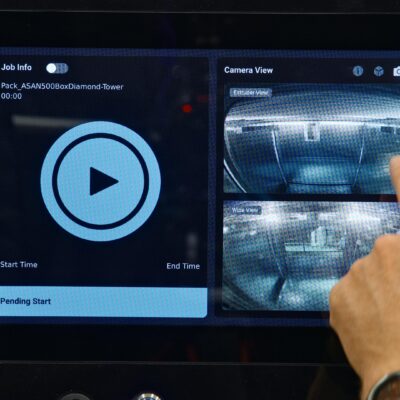

25% Increased Accuracy and Repeatability. Intuitive user interface screen, Autocalibration, Front-mounted, easy-to-install extruders, Simple material loading, Workflow-enhancing CAD-to-print software.
25% Lower Part Cost. Faster print speed, High part yield, Lower material pricing, Reduced labor.
| Build Envelope | 914.4 x 609.6 x 914.4 mm Platen supports two build zones for either a small or large build sheet |
| Material Delivery | 2 model canisters & 2 support material canisters of 1508 cc each. Auto changeover between canisters. |
| Material Options | ASA, ABS-M30™, ABS-M30i™, ABS-ESD7™, PC-ABS, PC-ISO™, PC, ULTEM™ 9085, ULTEM 1010, PPSF, FDM Nylon 12™, FDM Nylon 6™, ST-130™, FDM Nylon 12CF™ |
| Layer Thickness | 0.508 mm, 0.330 mm, 0.254 mm, 0.178 mm, 0.127 mm |
| System Size and Weight | 2772 x 1683 x 2027 mm, 2869 kg with Manufacturing Light Tower: 2772 x 1683 x 2281 mm |
| Achievable Accuracy | Within an accuracy of +/- .089 mm or +/- .0015 mm per mm whichever is greater. |
| Network Communication | 10/100 base T connection. Ethernet protocol. |
| Operator Attendance | Limited attendance for job start and stop required. |
| Operating Environment | Maximum temperature 29 °C. Maximum humidity 80%. |
| Power Requirements | 230 VAC (3 phase), 50/60Hz, Voltage fluctuation +/- Current 40A |
| Additional Requirements | Compressed Air Required 90-120 psi with a minimum flow of 20 CFM |
| Regulatory Compliance | CE, cTUVus, RCM, EAC, FCC Part B |
| Software | Insight™, Control Center™, GrabCAD Print™, GrabCAD Print Pro™ |
| Operating System | Microsoft Windows 8.1, 8 (Pro, Enterprise), 7 (Pro, Enterprise, Ultimate), and Vista (Business, Enterprise, Ultimate), Microsoft Windows Server 2008 and 2003 |
